KEY FEATURES

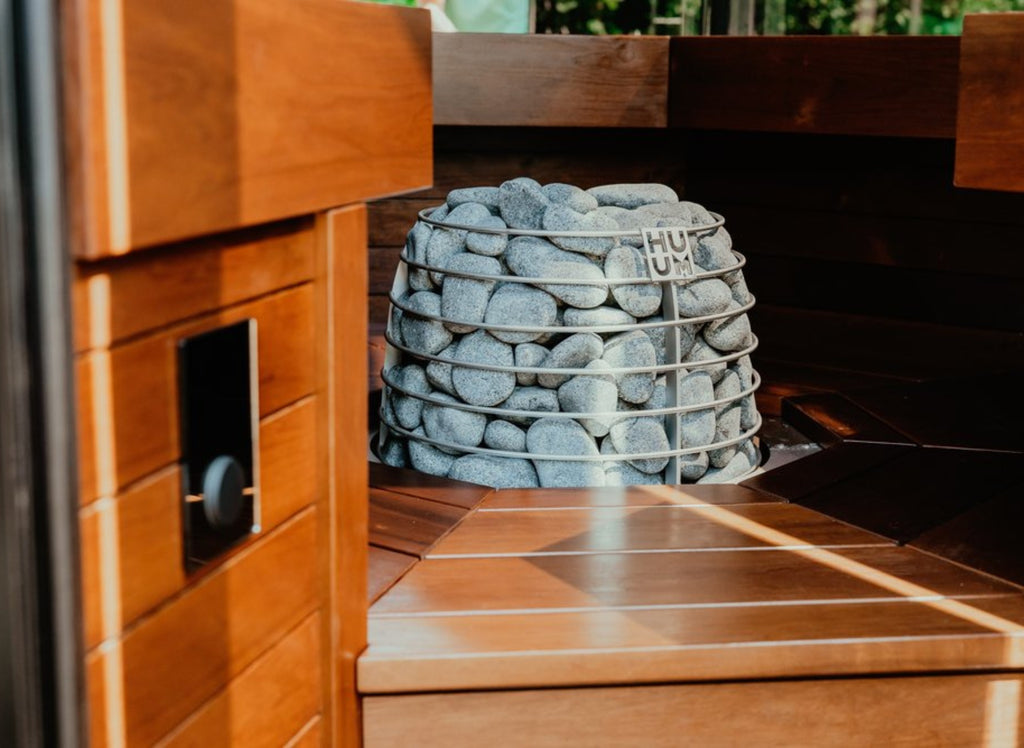

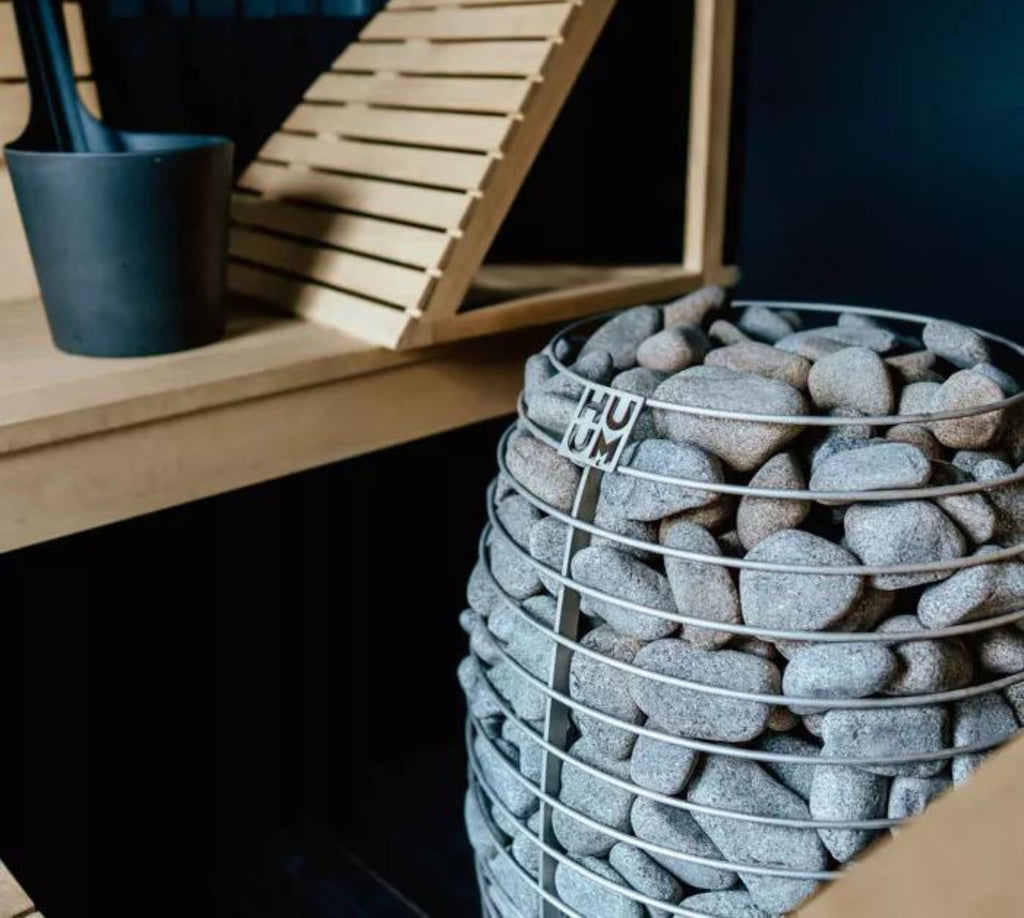

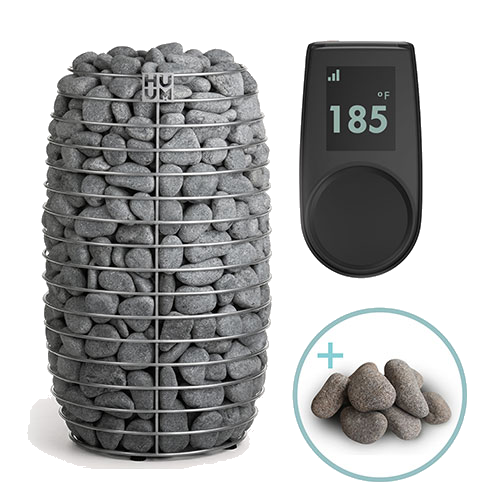

HIVE Mini 9.0kW Sauna Heater

• Elegant design
• 240V/1PH operation
• For sauna rooms from 282 to 530 cu. ft.
• Works with UKU controls
• 330 pound stone capacity
• Direct contact between stones and heating elements
• More exposed stones create a longer and milder heat

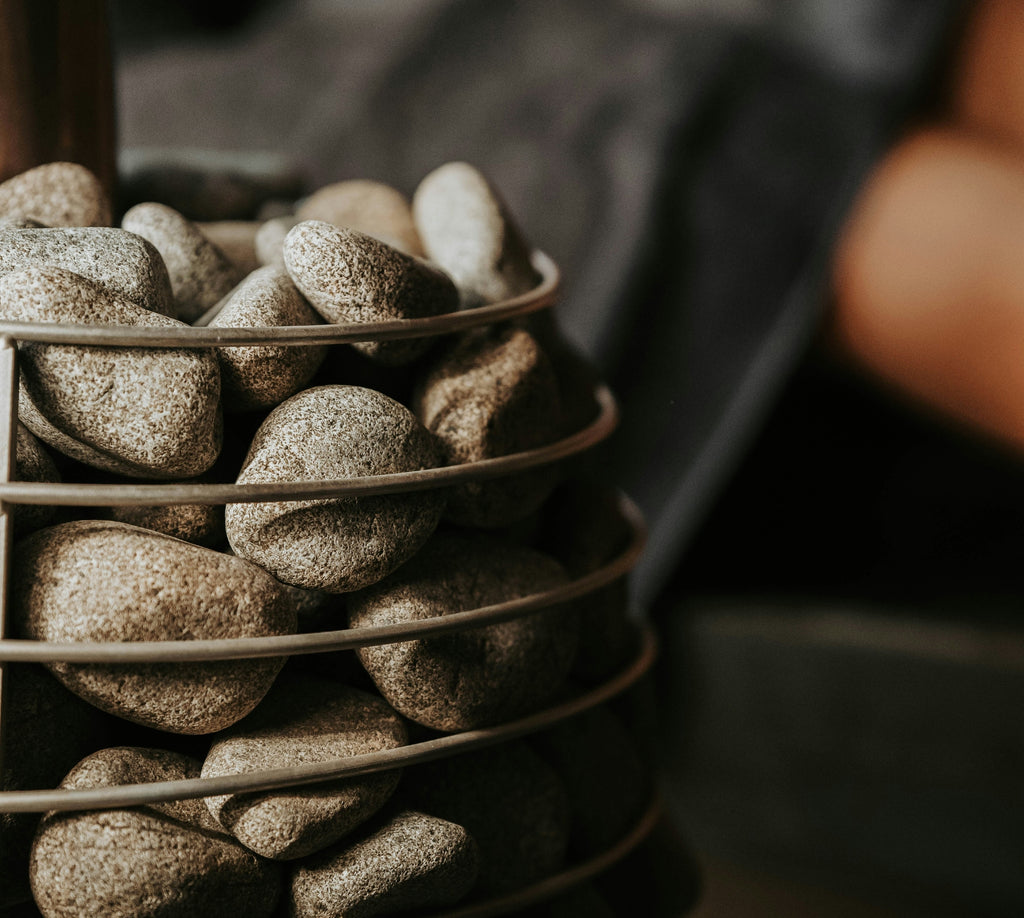

• Stainless steel construction
• Stainless steel, industrial quality heating elements​
• Floor model with adjustable legs
• Air tunnel shortens heat-up time and increases life of heating elements
• Designed, engineered, and made in Estonia
• Dimensions: 18.1"Diameter (460mm) x 29.5"H (750mm)
• SGS listed
• Limited 5-year warranty (excluding elements)

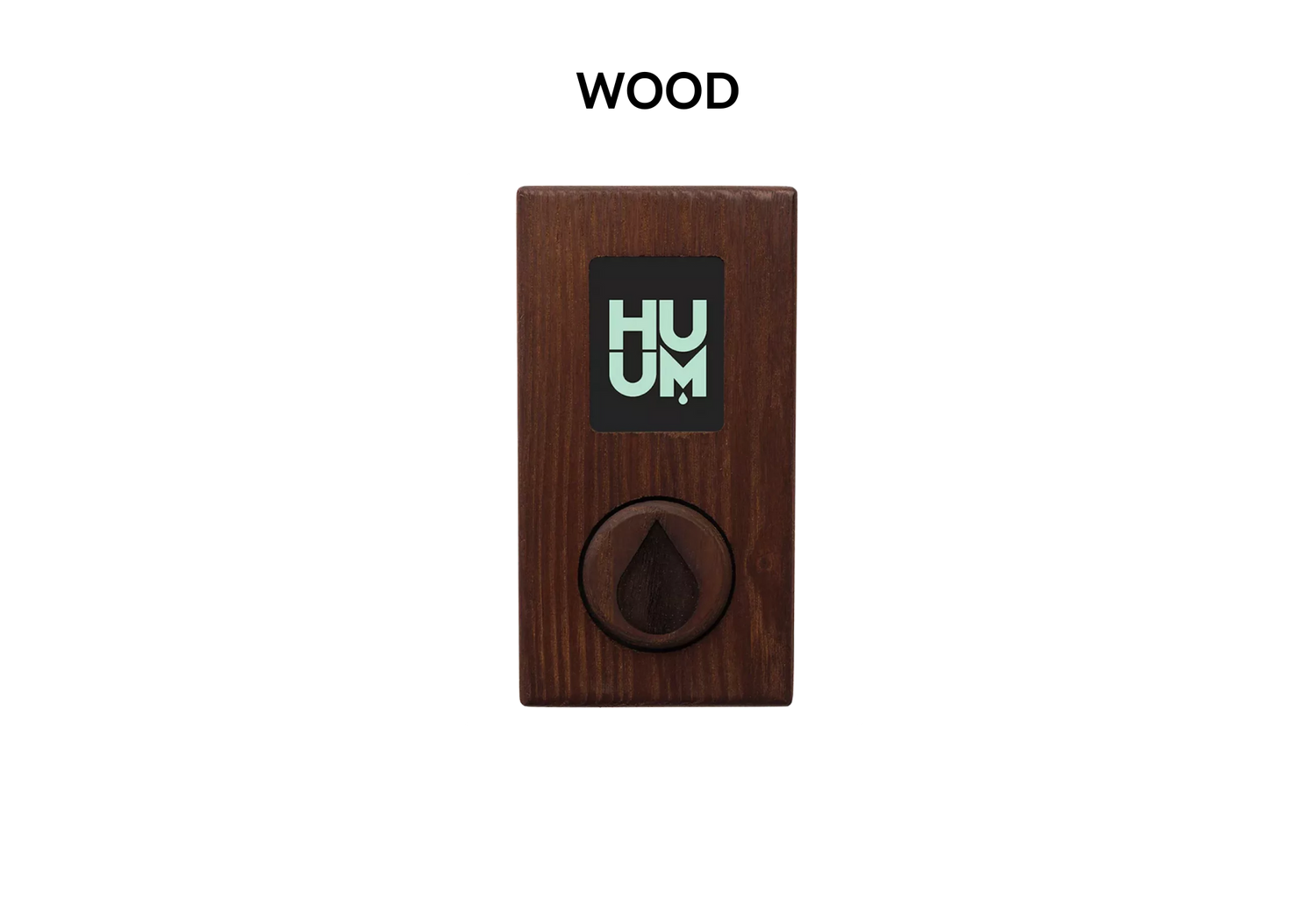

UKU Control

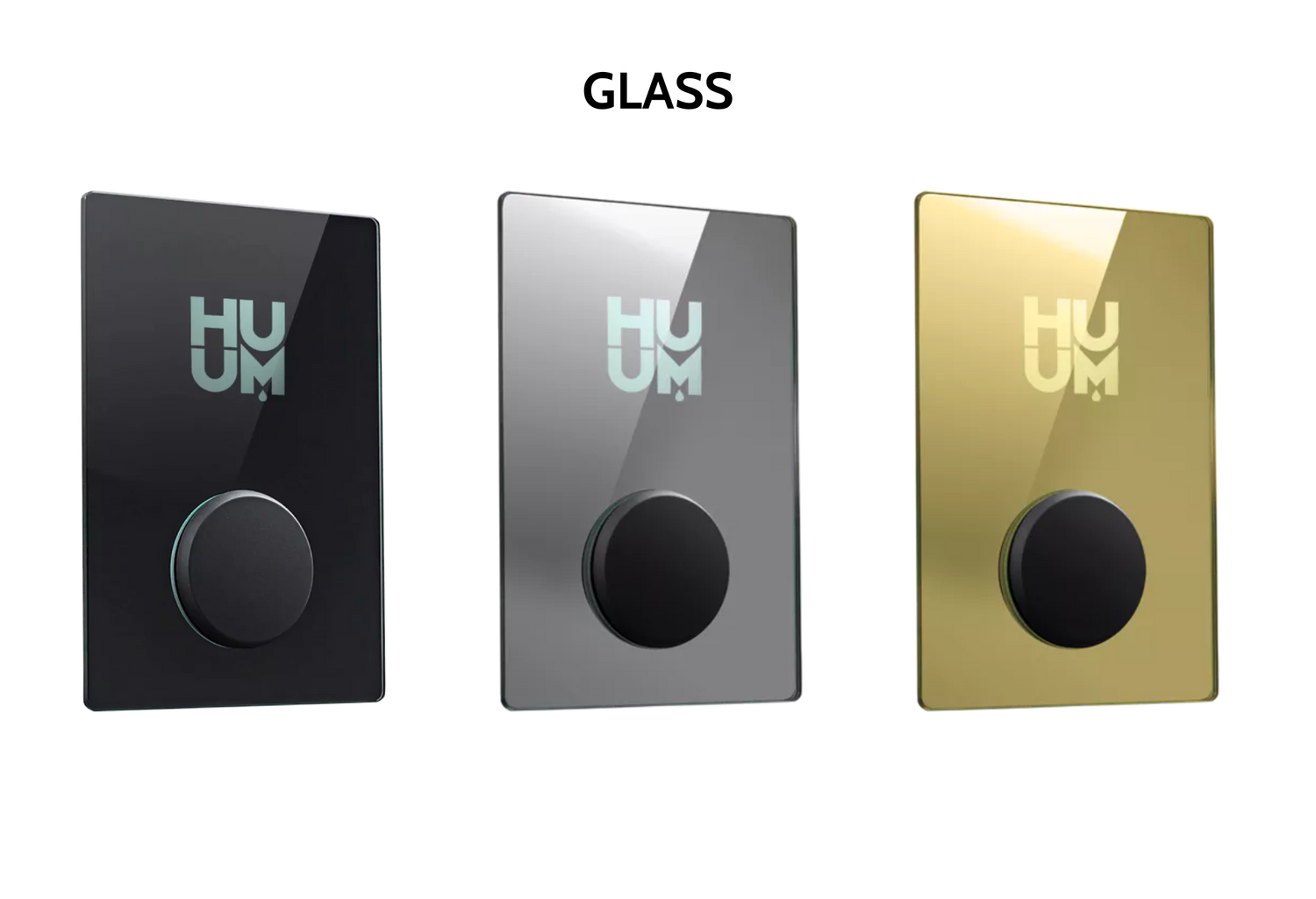

• Sleek black control display panel
• Multiple color options available (additional charges apply)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 104-230°F
• Delayed start up to 48hrs in advance
• Optional built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
• 8 language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
• Inside/outside sauna room installation
• Optional smart heating setting

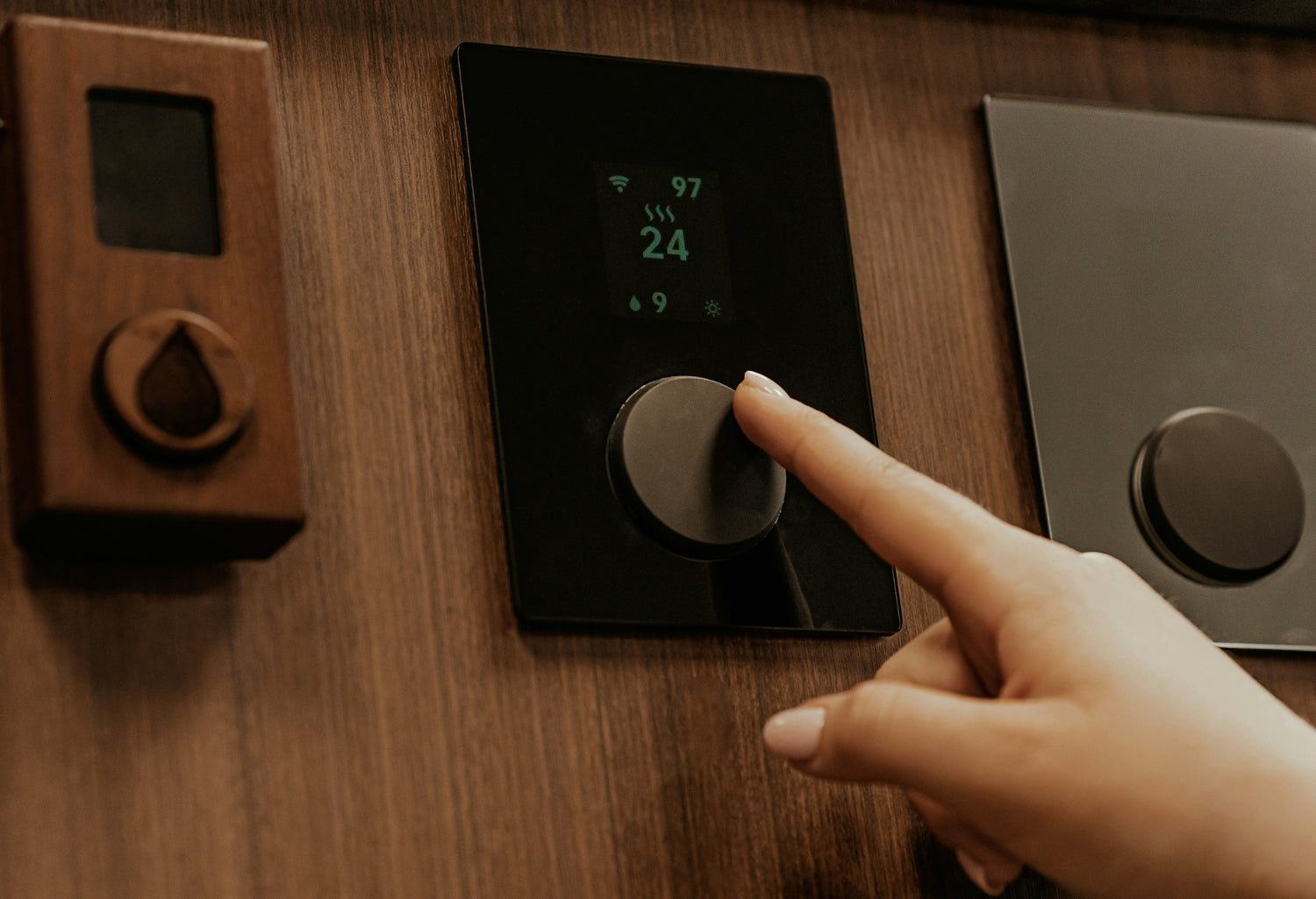

• Available decorative control display panels
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock
• Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
• Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)
• Limited 5-year warranty

Stones 24

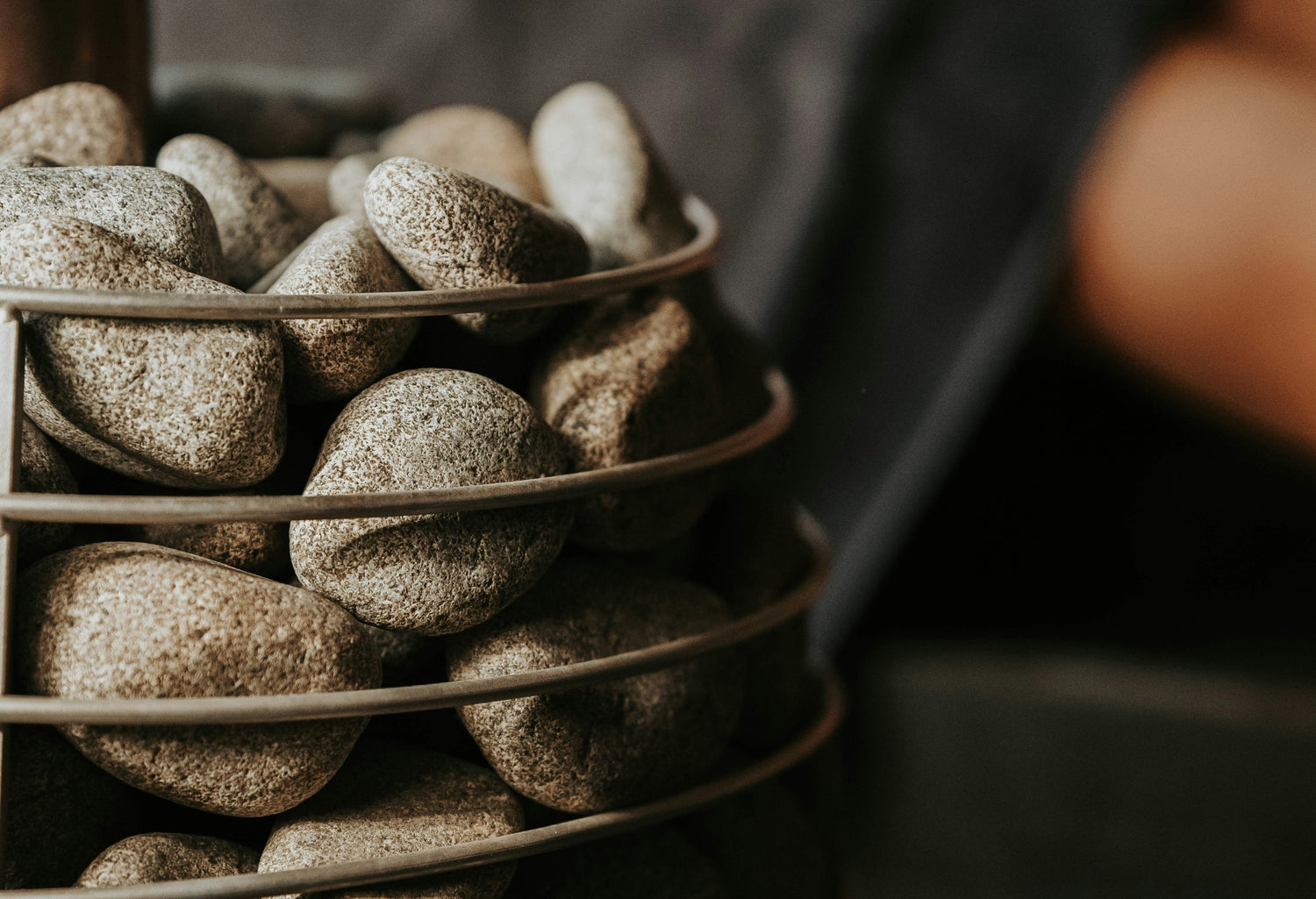

• Olivine diabase sauna stones
• Rounded shape to complement heater design
• Durable with high-heat capacity
• Stones range from 2" to 4" (5-10 cm)

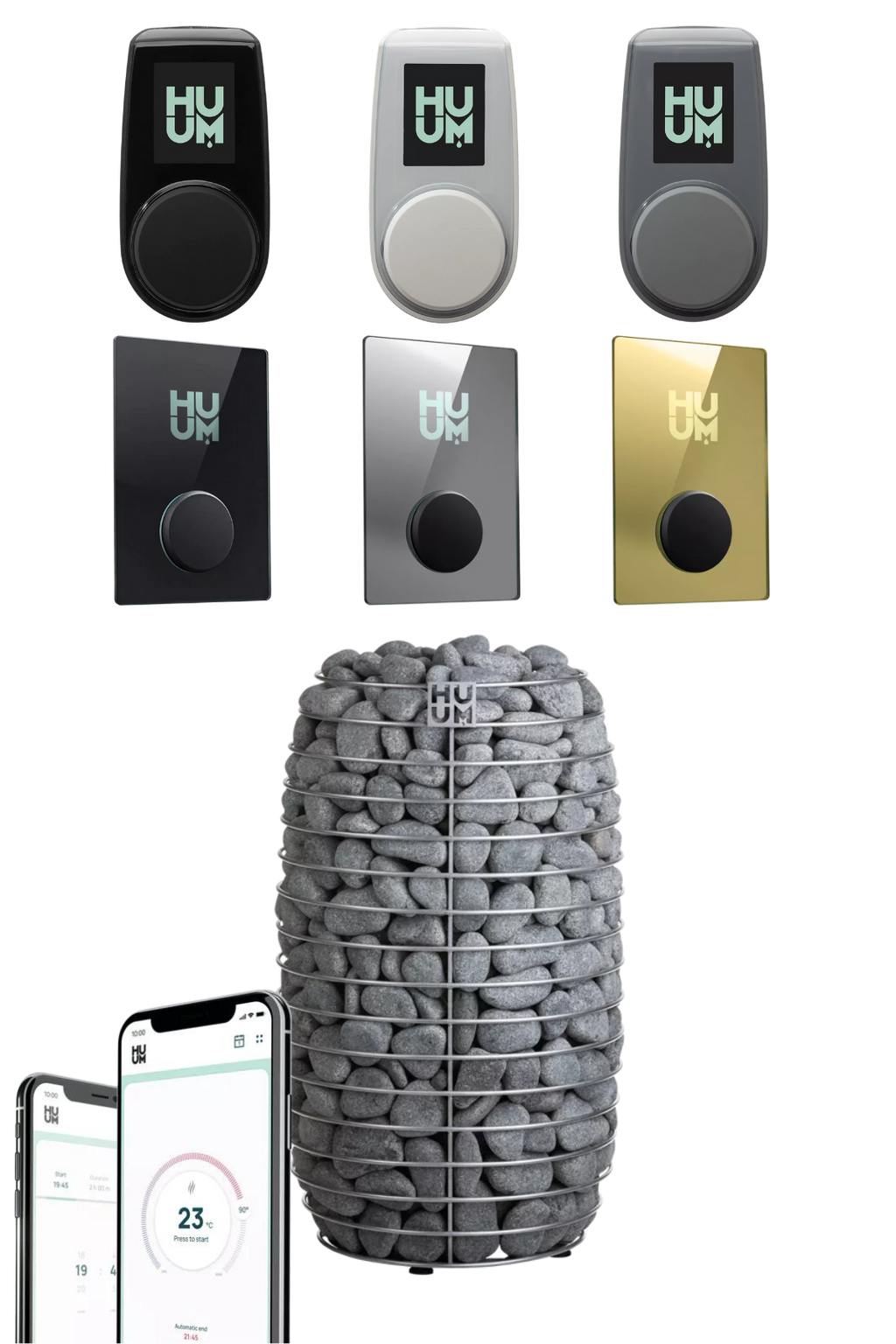

WHAT'S INCLUDED?

HIVE Mini 9.0kW Sauna Heater

• 9.0kW Sauna Heater
• Adjustable Legs
• Pre-Installed HIVE Air Tunnel
• Installation and Operation Manual
• 5-Year Limited Warranty (excluding elements)

UKU Control

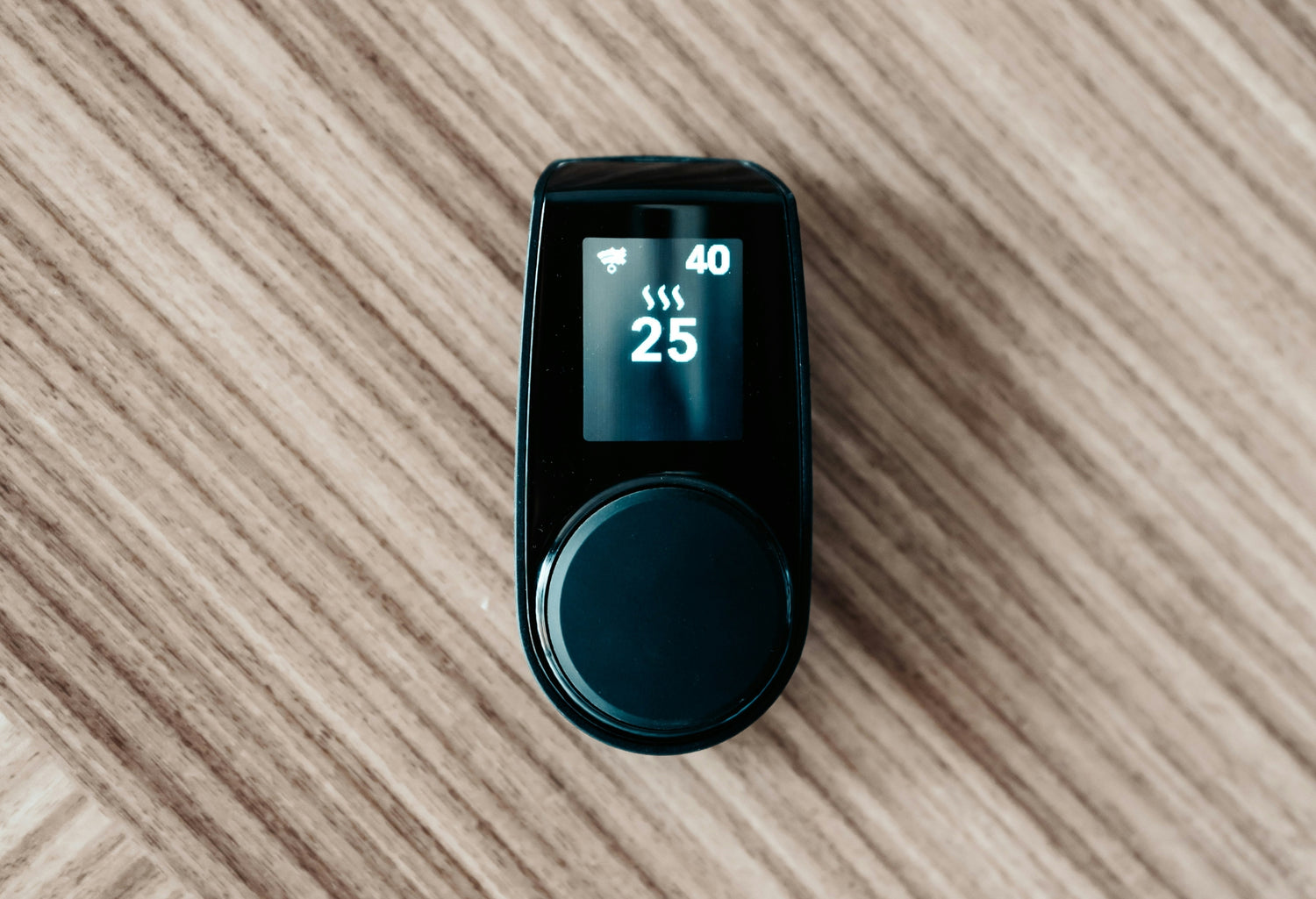

• Black Control Console
• Main Control Module
• Temperature Sensor
• Door Sensor
• Control Display Panel Cable
• Temperature Sensor Cable
• Door Sensor Cable
• Installation and Operation Manual
• 5-Year Limited Warranty

Stones 24

• 330 lbs of 2" - 4" (5-10 cm) Round Olivine Sauna Stones

ELECTRICAL SPECS

OVERVIEW

Electrical Spec Guide

240V, Single Phase Amperage
37.5 Amps

• Kilowatt Rating: 9W
• Minimum Cubic Feet: 282 CF
• Maximum Cubic Feet: 530CF
• Circuit Breaker Amperage: 50 Amps
• Wire Size: 8 AWG

SHIPPING & DELIVERY

READY TO SHIP!

Please allow 5-7 business days transit time to receive your order once it has shipped. *This time frame pertains to orders placed within the continental United States and does not include Alaska and Hawaii.

CURBSIDE DELIVERY

The price you see is the price you pay. Shipping and standard curbside delivery is included in all US domestic lower 48 states.

DELIVERY DETAILS

This sauna heater is delivered fully assembled. It may be delivered Ground shipping or by a freight truck depending on size, weight, and location. If a freight truck is required, we'll reach out to schedule a delivery appointment. It may arrive on a wooden pallet for solid protection. The driver is responsible for “curbside delivery only” and will provide limited assistance at the site. Prior to shipping this product, we contact customers to share shipment details & needs, and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.

5-Year Limited Warranty

DOCUMENTS

HIVE Installation & Operation Manual

HIVE Warranty

UKU Installation & Operation Manual

UKU Install Diagram - Classic
UKU Install Diagram - Glass

UKU Installation Video

UKU Controller Warranty

Stone Placement Video
