KEY FEATURES

Drop 4.5kW Sauna Heater

• Unique water drop design
• 240V/1PH operation
• For sauna rooms from 106 to 247 cu ft
• Works with UKU controls (sold separately)
• 122 pound stone capacity (required 4 boxes sold separately)
• Direct contact between stones and heating elements
• More exposed stones create a longer and milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements​
• Wall-mounted design
• Designed, engineered, and made in Estonia
• Dimensions: 15.4"W (390mm) x 13.2"D (335mm) x 23.3"H (590mm)
• SGS Listed
• Limited 5-year warranty (excluding elements)

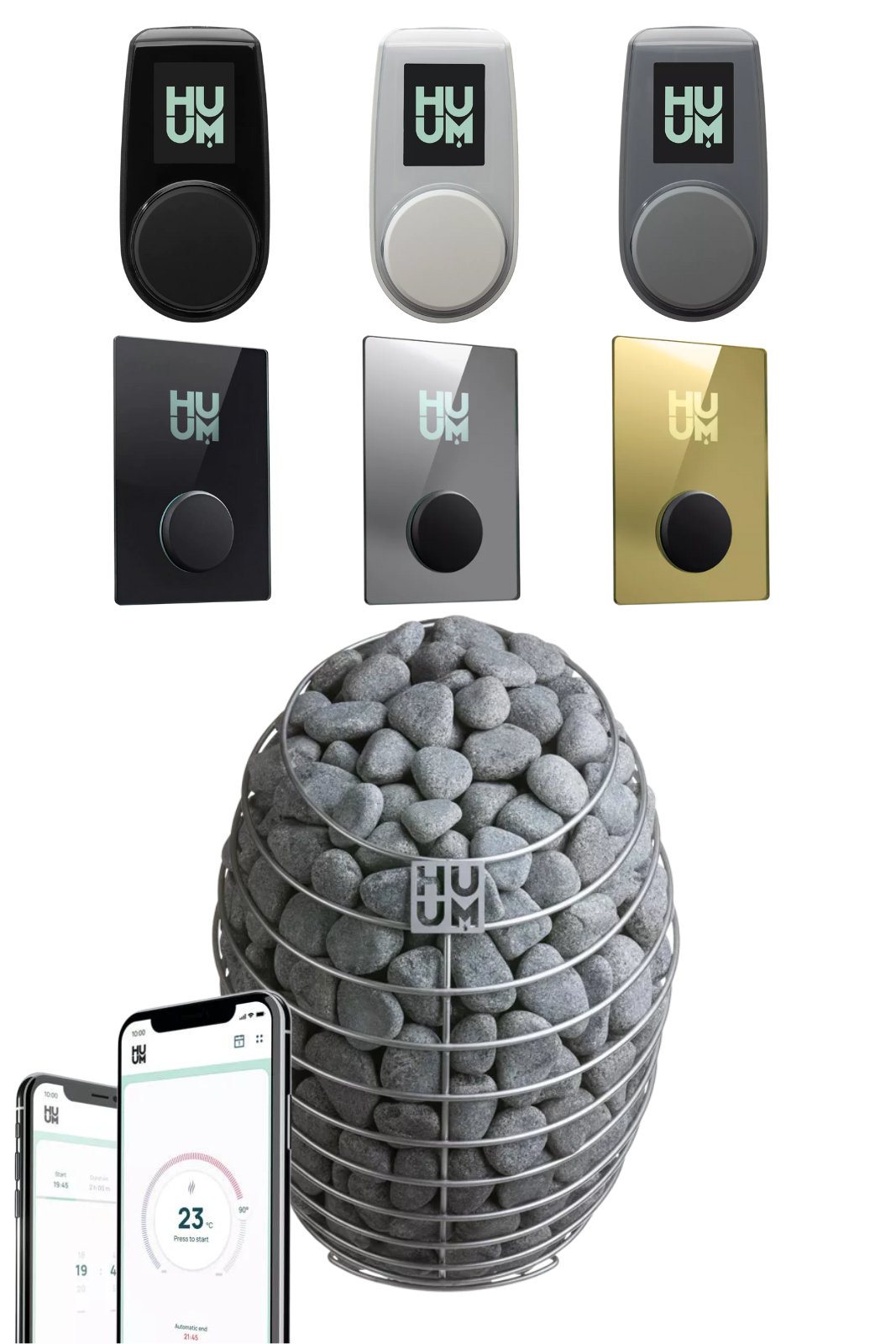

UKU

• Sleek Black control display panel
• Multiple Color Options available (additional charges apply)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 104-230F
• Delayed start up to 48hrs in advance
• Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
• 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
• Inside/outside sauna room installation
• Optional smart heating setting
• Available decorative control display panels
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock
• Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
• Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

Stones 24

• Olivine diabase sauna stones
• Rounded shape to complement heater design
• Durable with high-heat capacity
• Stones range from 2" to 4" (5-10 cm)

WHAT'S INCLUDED?

Drop 6kW Sauna Heater

• 6kW sauna heater
• Wall-mount bracket
• Installation and operation manual
• Limited 5-year warranty (excluding elements)

UKU

• Black Control console
• Main control module
• Temperature sensor
• Door sensor
• Control display panel cable
• Temperature sensor cable
• Door sensor cable
• Installation and operation manual
• 5-Year limited warranty

Stones 24

• 132 lbs of 2" - 4" (5-10 cm) round Olivine sauna stones

ELECTRICAL SPECS

OVERVIEW

Electrical Spec Guide

240V, Single Phase Amperage
25 Amps

• Kilowatt Rating: 6kW
• Minimum Cubic Feet: 177 CF
• Maximum Cubic Feet: 353 CF
• Circuit Breaker Amperage: 30 Amps
• Wire Size: 10 AWG
