KEY FEATURES

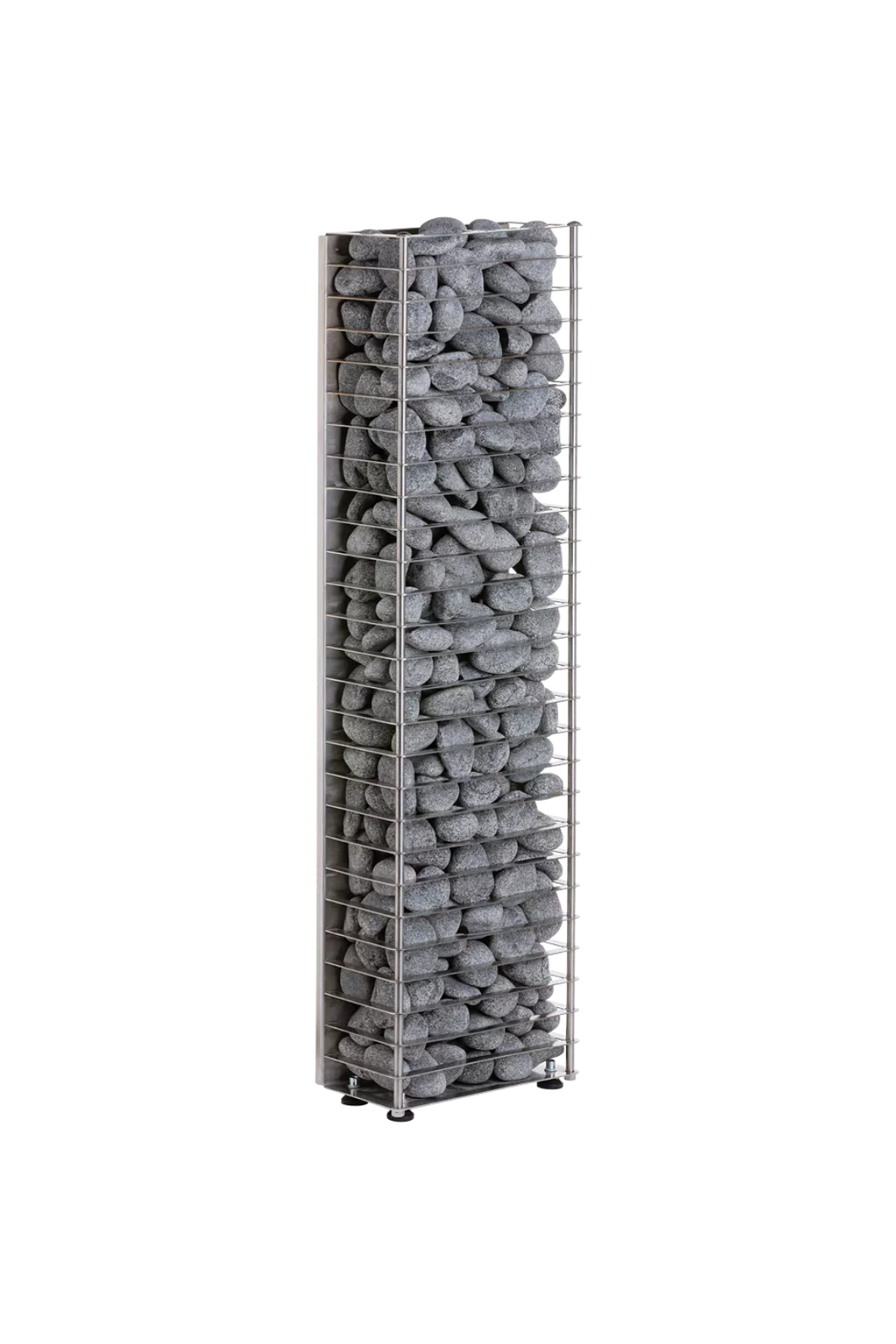

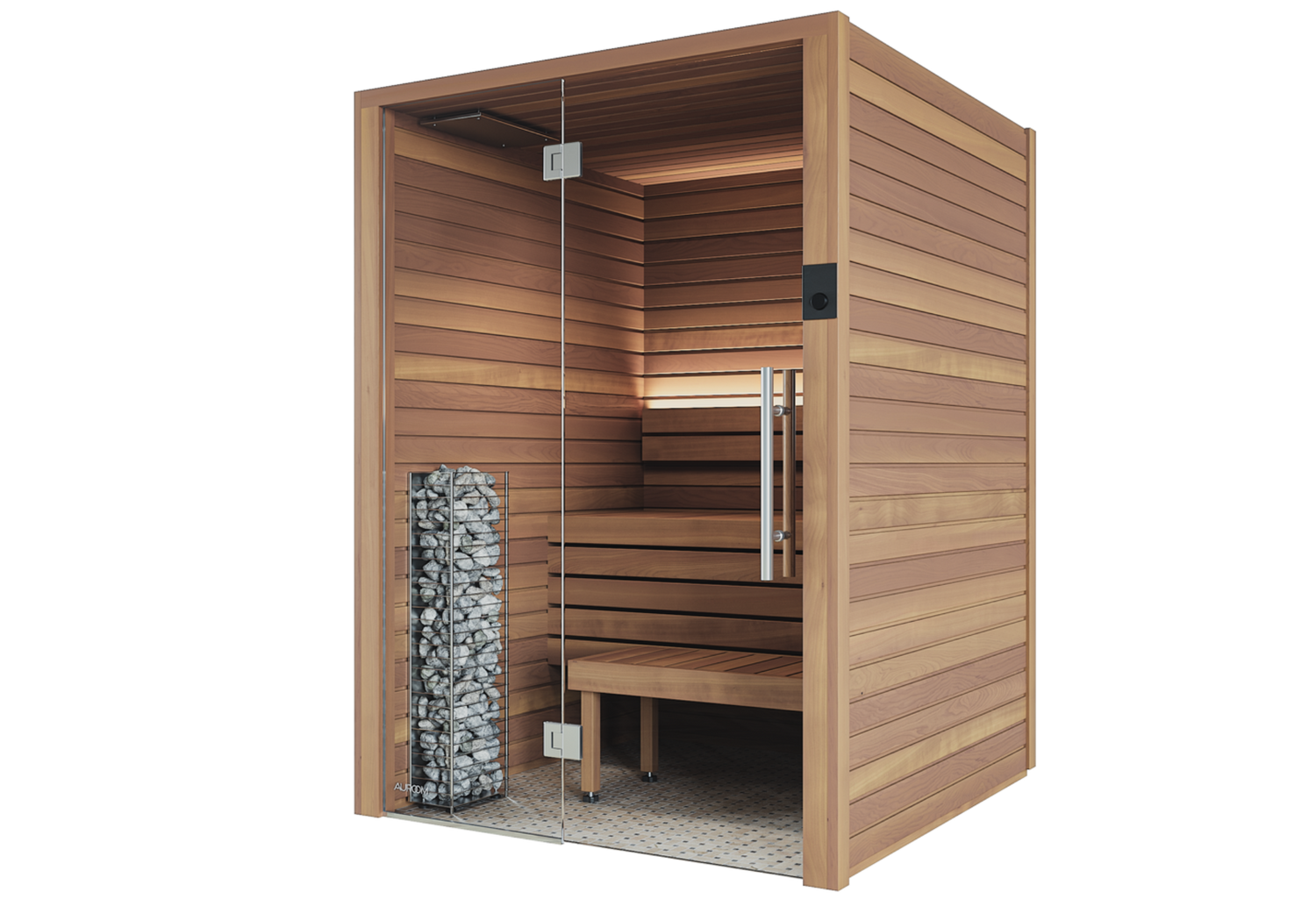

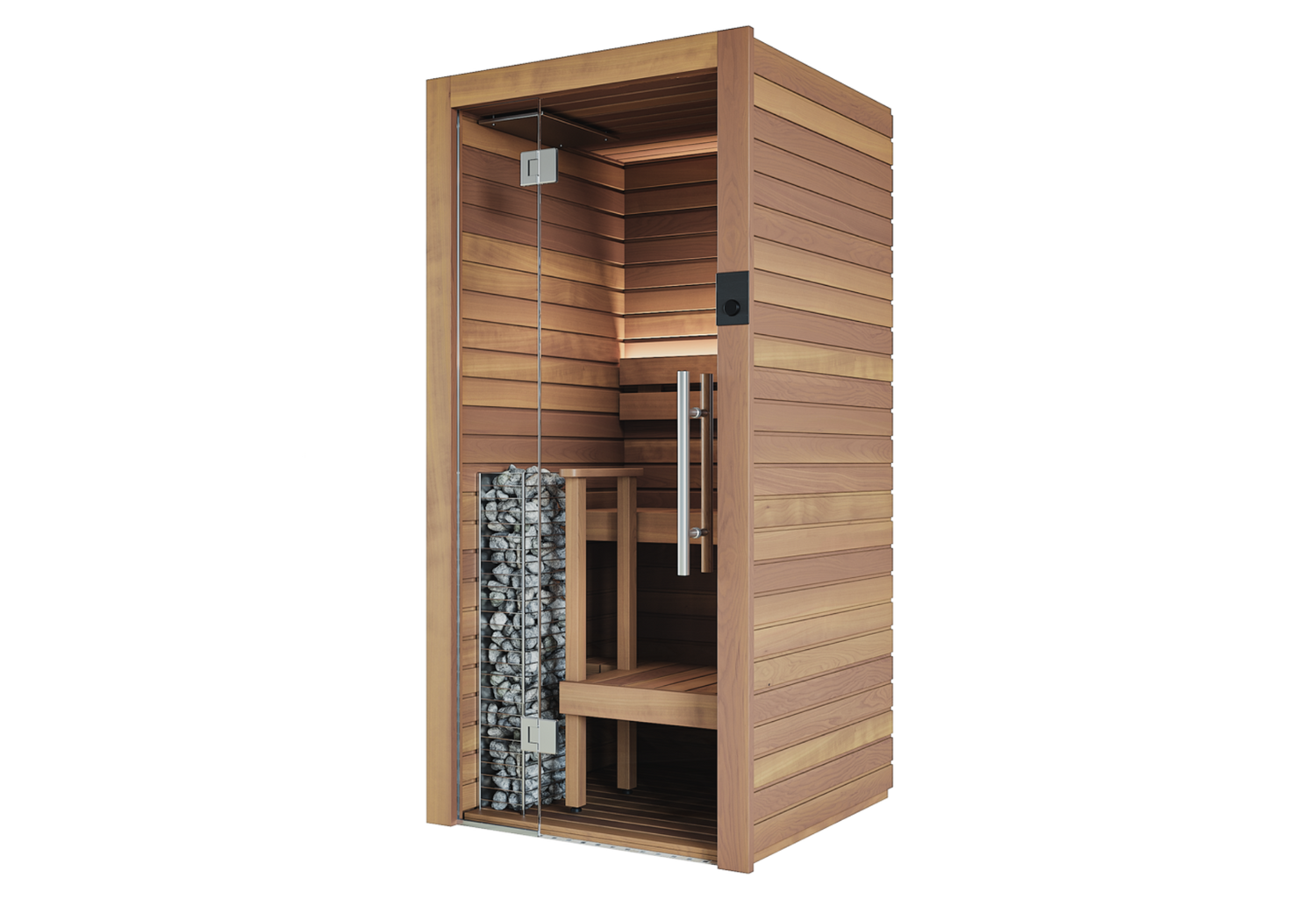

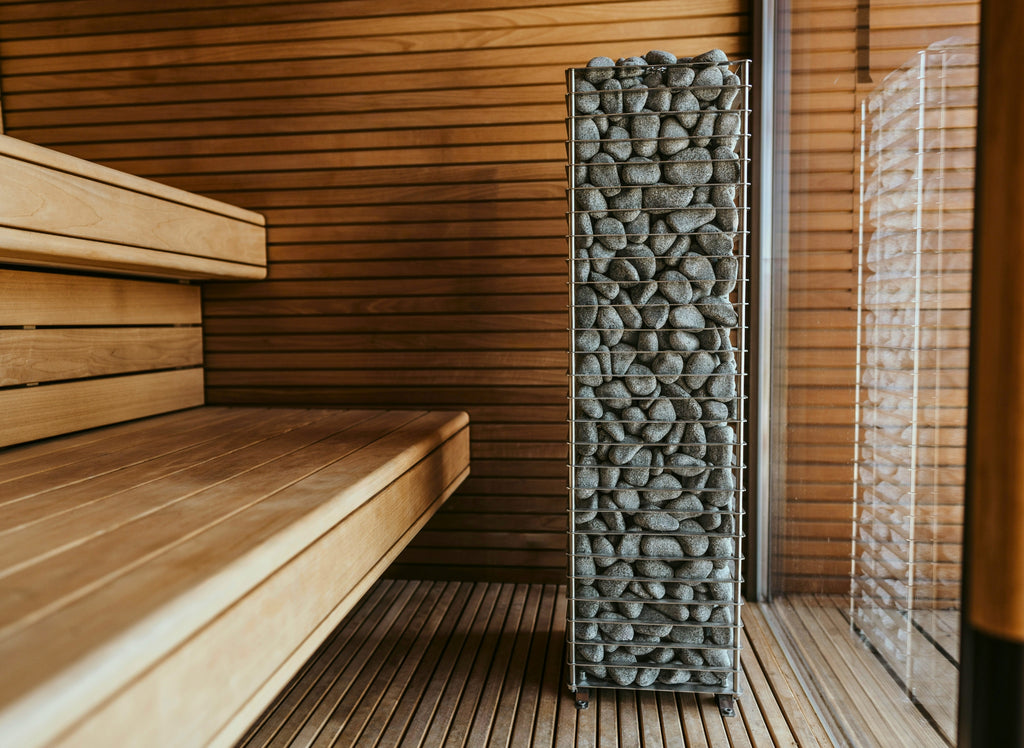

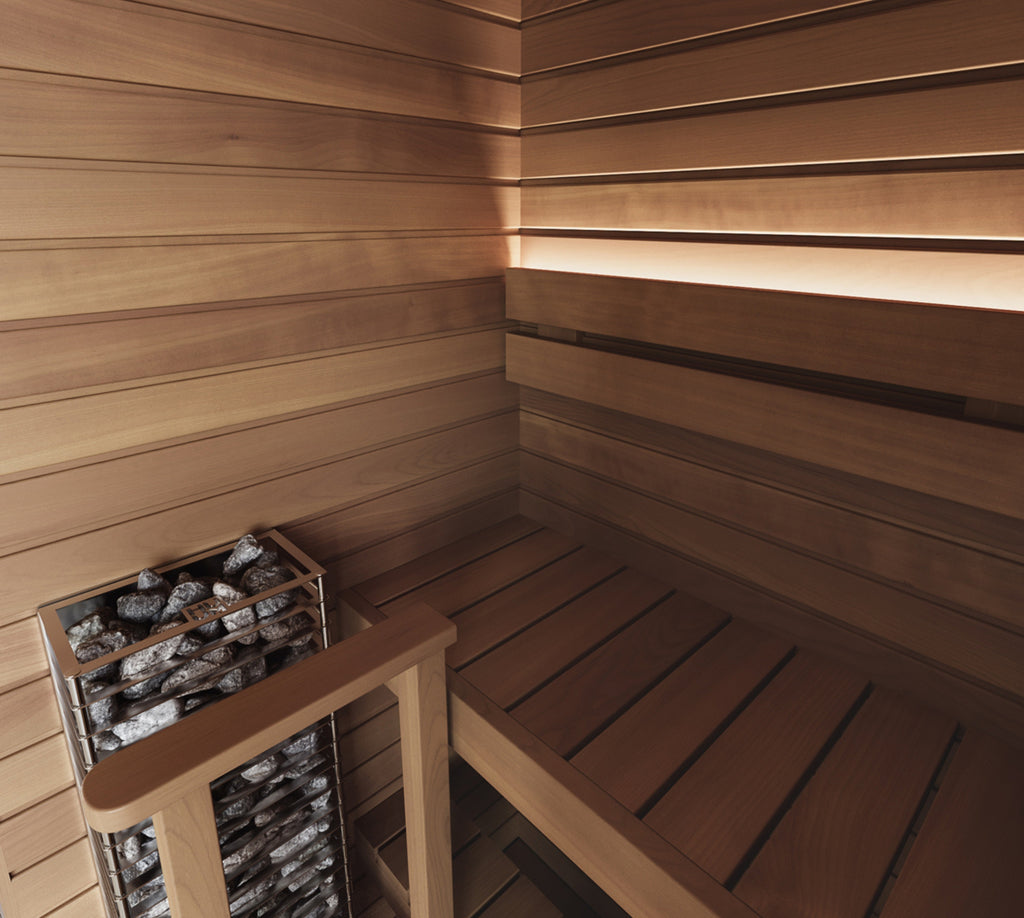

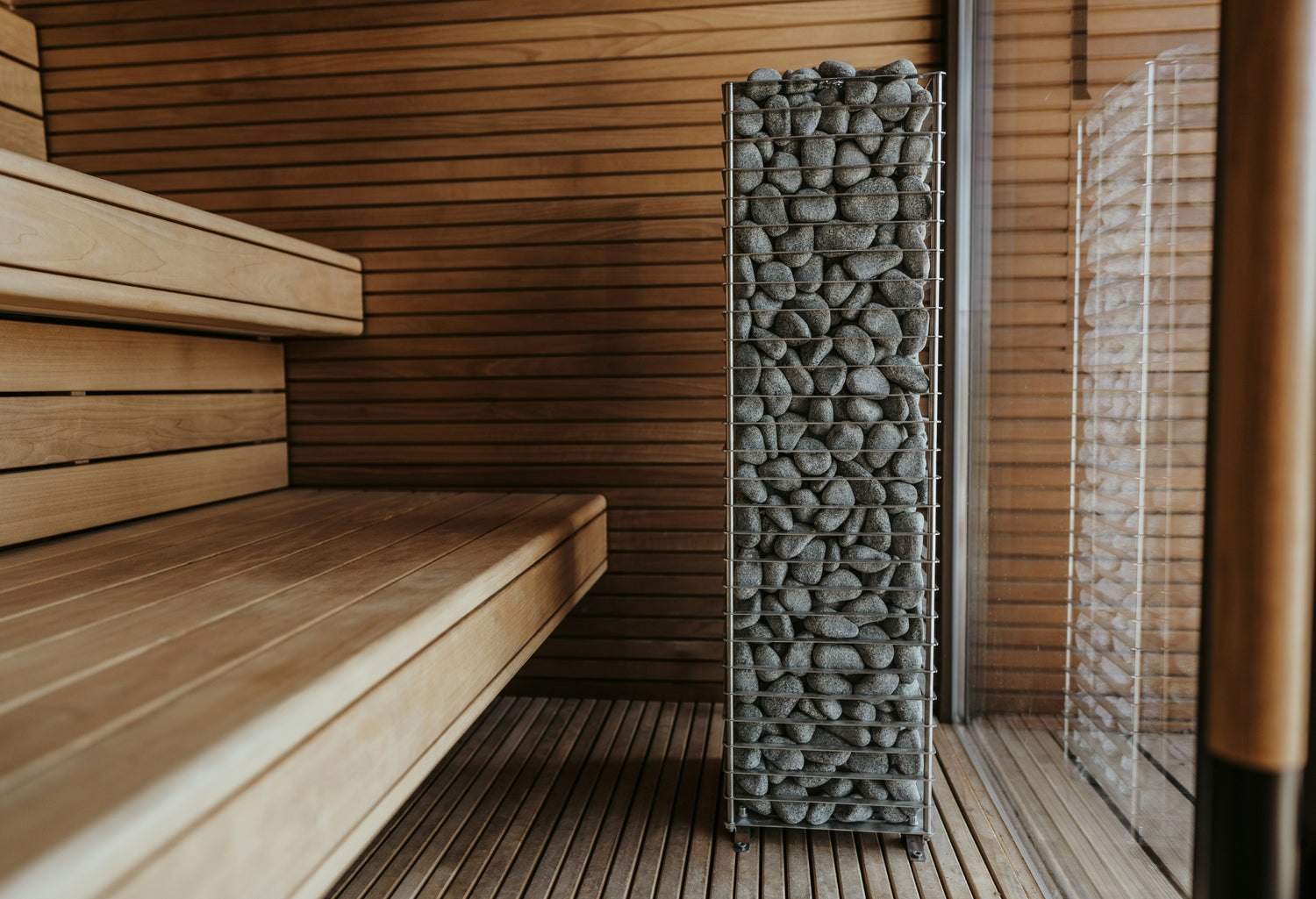

CLIFF Mini 3.5kW Sauna Heater

• Slender design
• Suitable for use in small saunas with limited space
• Small safety distances
• Heats up to 25% faster due to internal air duct
• For sauna rooms from 123 to 212 cu. ft.
• 133 pound stone capacity
• Removable rib(s) for more accurate stacking of stones
• Direct contact between stones and heating elements
• More exposed stones create a longer and milder heat
• Stainless steel construction
• Stainless steel, industrial quality heating elements​
• Wall-mount model
• Designed, engineered, and made in Estonia
• Dimensions: 10.6" W (270mm) x 6.3" D (160mm) x 38.4" H (975mm)
• Limited 5-year warranty (excluding elements)

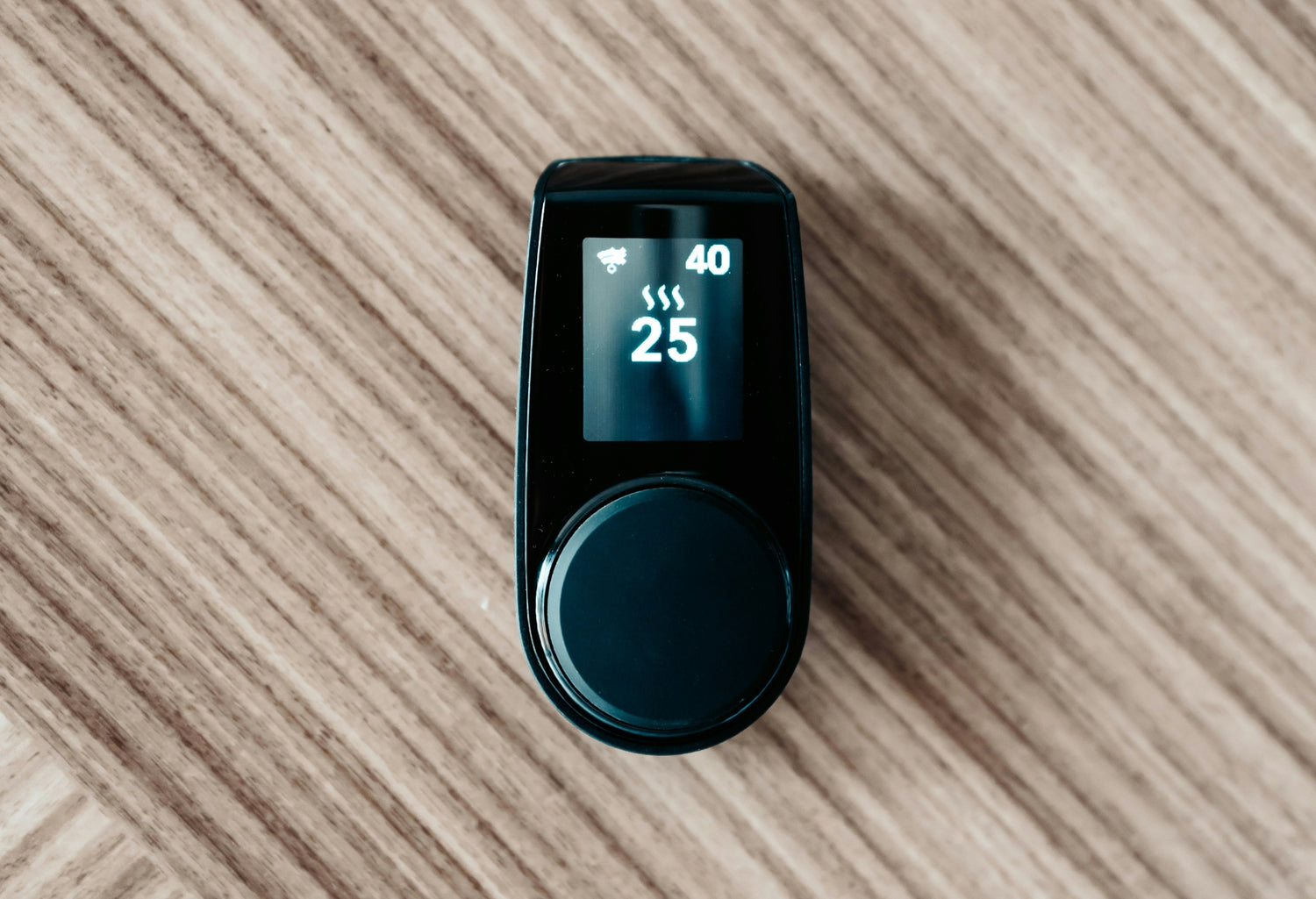

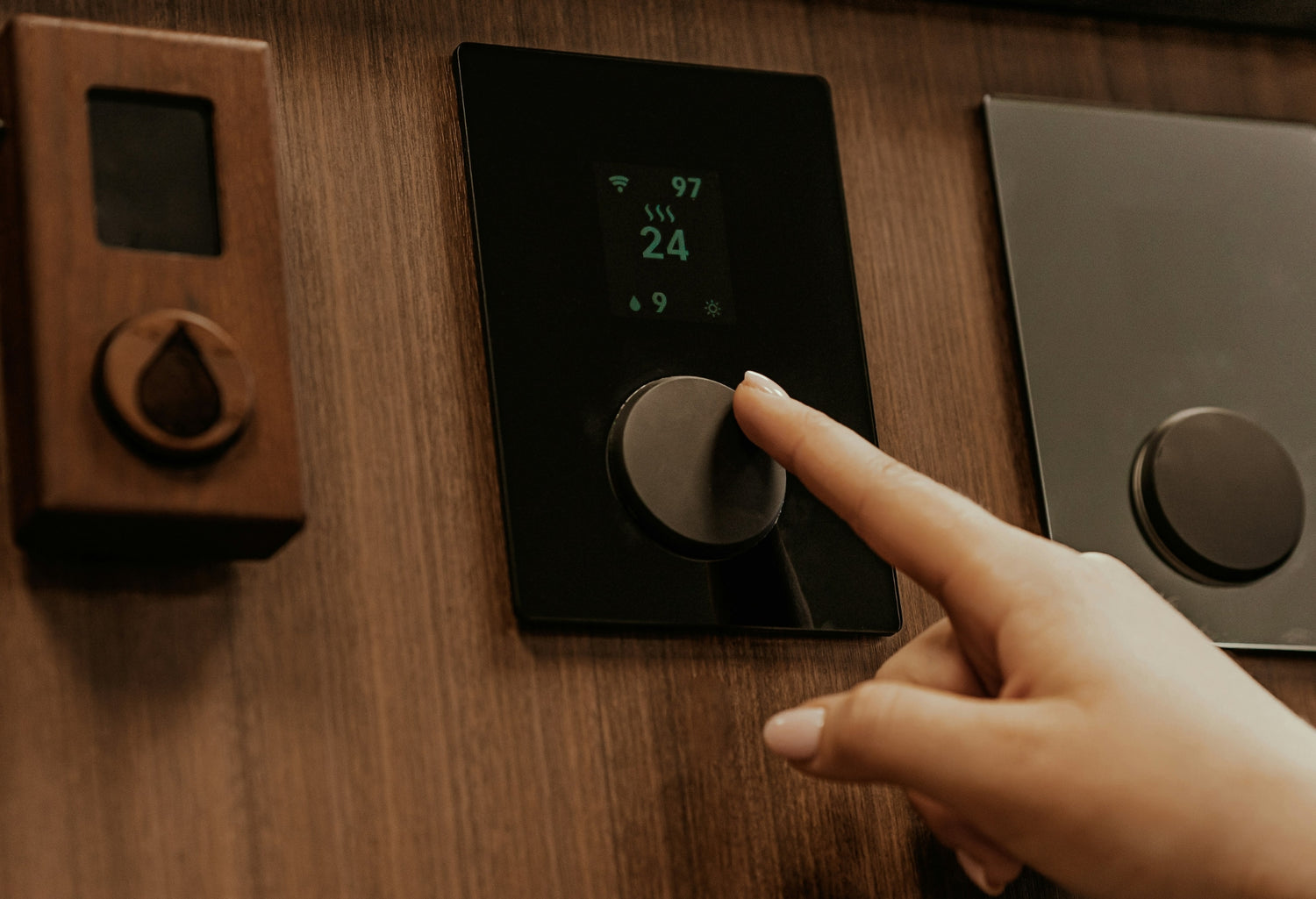

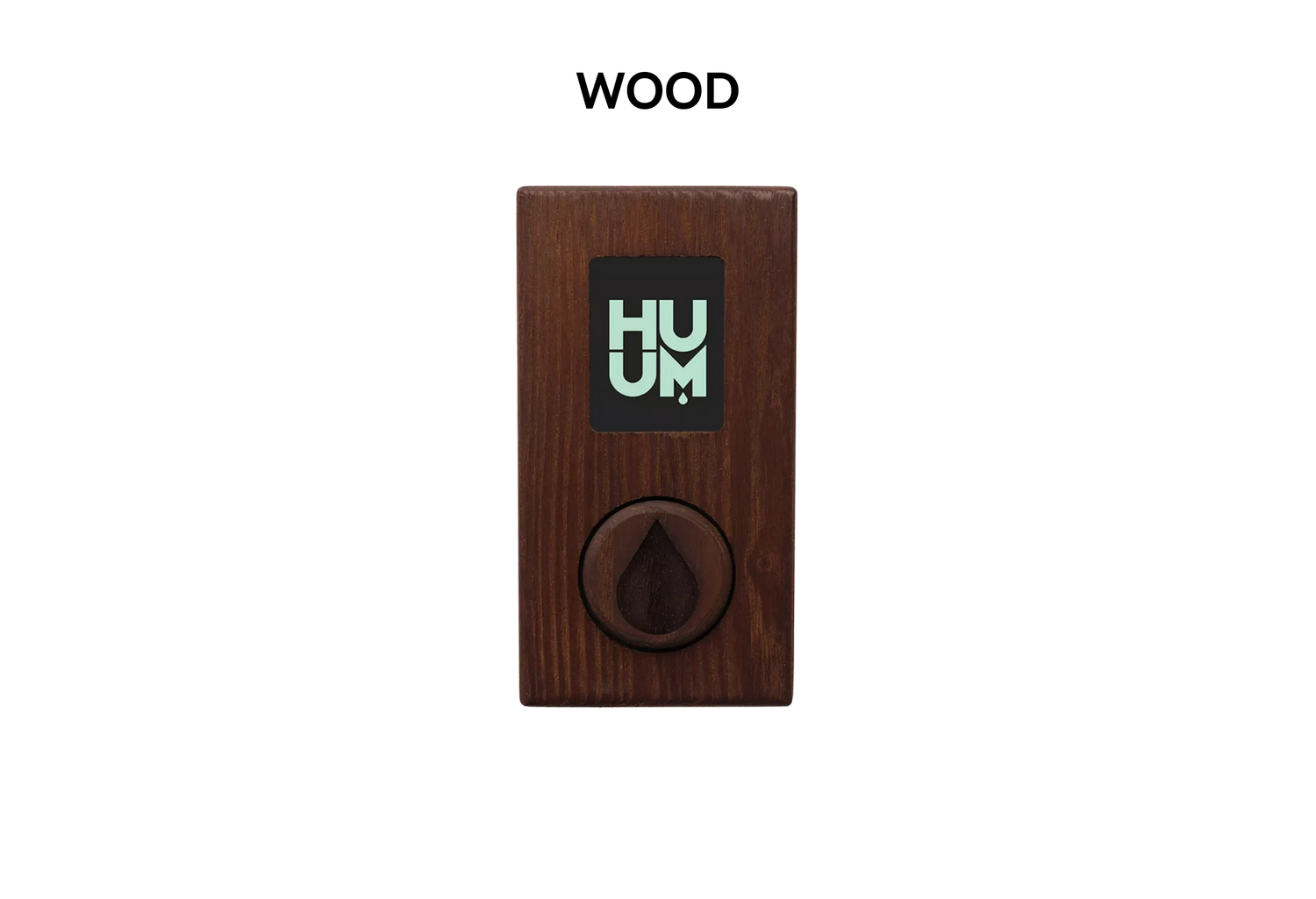

UKU

• Sleek Black control display panel
• Multiple Color Options available (additional charges apply)
• Settable on/off, time, temperature, and delay
• Settable temperature range of 104-230F
• Delayed start up to 48hrs in advance
• Optional Built-in Wi-Fi interface for HUUM mobile app (additional charges apply)
• 8 Language options: English, German, Russian, Italian, Finnish, Estonian, Polish and French
• Inside/outside sauna room installation
• Optional smart heating setting

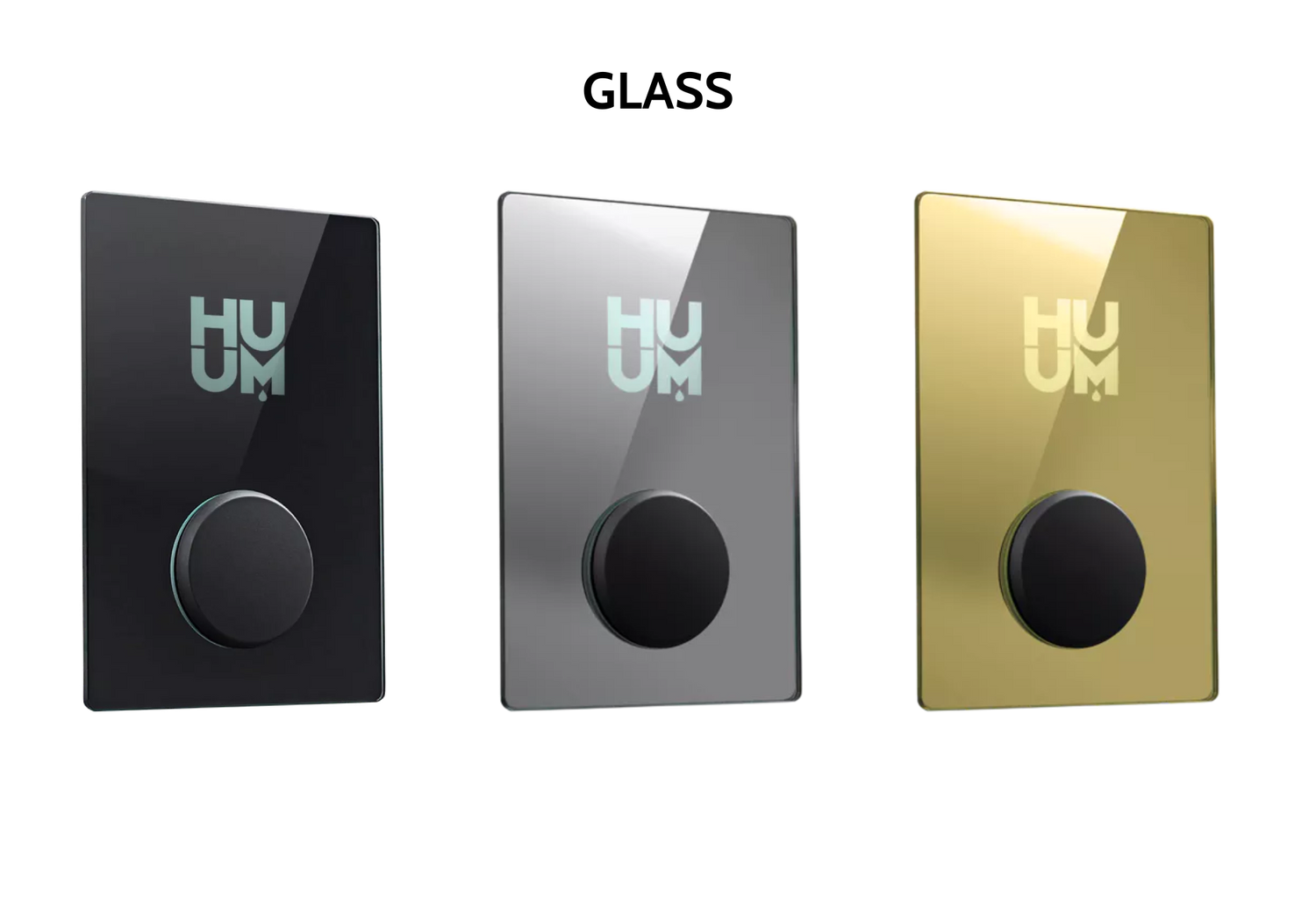

• Available decorative control display panels
• Displays set temperature and room temperature
• Temperature sensor
• Door sensor to keep the heat inside the room
• Remotely located main control module
• Connects to lights and ventilation
• Overheat protection
• Child safety lock
• Control Console Dimensions: 2.2"W (55mm) x 0.9"D (22mm) x 4.1"H (105mm)
• Main Control Module Dimensions: 3.5"W (90mm) x 2.3"D (58mm) x 5.6"H (142mm)

Stones 12

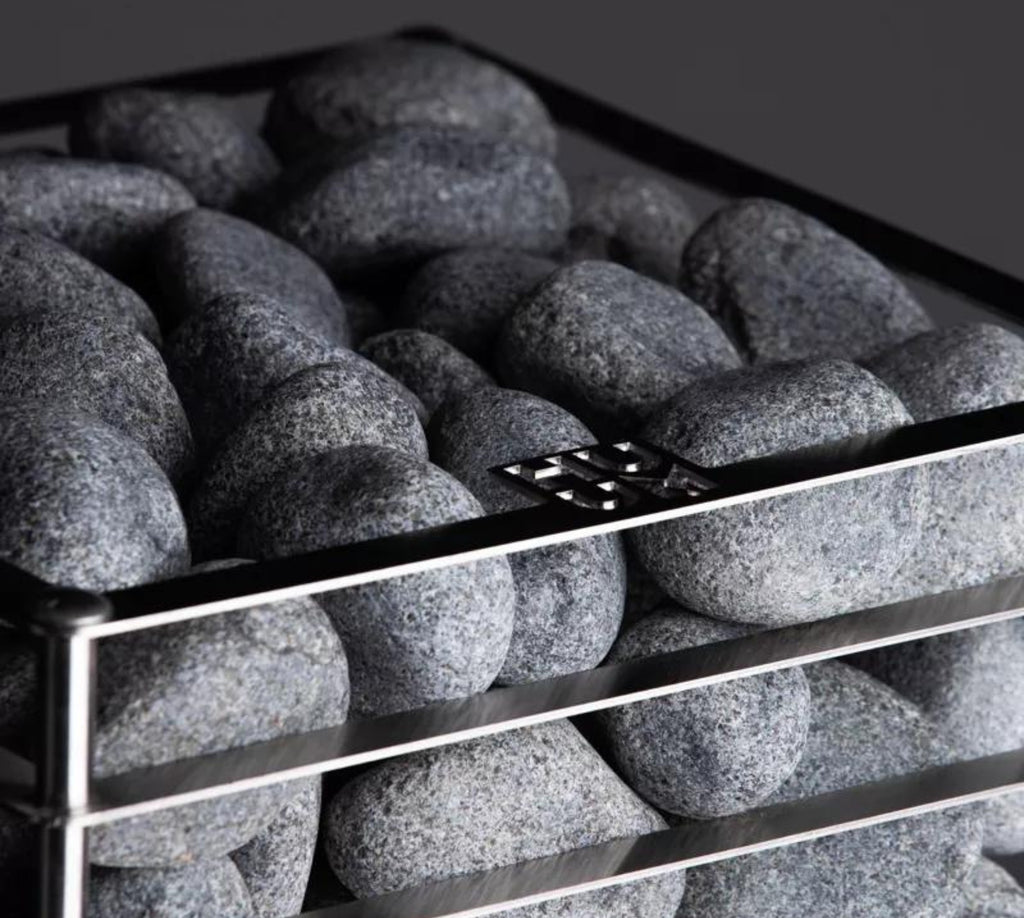

• Olivine diabase sauna stones
• Rounded shape to complement heater design
• Durable with high-heat capacity
• Stones range from 1" to 2" (3-5 cm)

WHAT'S INCLUDED?

CLIFF Mini 3.5kw Sauna Heater

• 3.5kW sauna heater
• 2 prop blocks (for removal of sauna rib slats)
• Installation and operation manual
• 5-Year limited warranty (excluding elements)

UKU

• Black/Custom Color Control console
• Main control module
• Temperature sensor
• Door sensor
• Control display panel cable
• Temperature sensor cable
• Door sensor cable
• Installation and operation manual
• 5-Year limited warranty

Stones 12

• 132 lbs of 1" to 2" (3-5 cm) round Olivine sauna stones

ELECTRICAL SPECS

OVERVIEW

Electrical Spec Guide

240V, Single Phase Amperage
14.58 Amps

• Kilowatt Rating: 3.5W
• Minimum Cubic Feet: 123 CF
• Maximum Cubic Feet: 212 CF
• Circuit Breaker Amperage: 15 Amps
• Wire Size: 14 AWG

SHIPPING & DELIVERY

READY TO SHIP!

Please allow 5-7 business days transit time to receive your order once it has shipped. *This time frame pertains to orders placed within the continental United States and does not include Alaska and Hawaii.

CURBSIDE DELIVERY

The price you see is the price you pay. Shipping and standard curbside delivery is included in all US domestic lower 48 states.

DELIVERY DETAILS

This sauna heater is delivered fully assembled. It may be delivered Ground shipping or by a freight truck depending on size, weight, and location. If a freight truck is required, we'll reach out to schedule a delivery appointment. It may arrive on a wooden pallet for solid protection. The driver is responsible for “curbside delivery only” and will provide limited assistance at the site. Prior to shipping this product, we contact customers to share shipment details & needs, and discuss any extenuating delivery circumstances that may complicate or cause additional delivery expenses. Our goal is to ensure your project’s success.

5-Year Limited Warranty

DOCUMENTS

CLIFF Installation & Operation Manual

CLIFF Warranty

UKU Installation & Operation Manual

UKU Install Diagram - Classic
UKU Install Diagram - Glass

UKU Installation Video

UKU Controller Warranty

Stone Placement Video
